Wood Chips 6-12mm 1-2t/h Biomass Pellet Production Line with high density
Product Description:

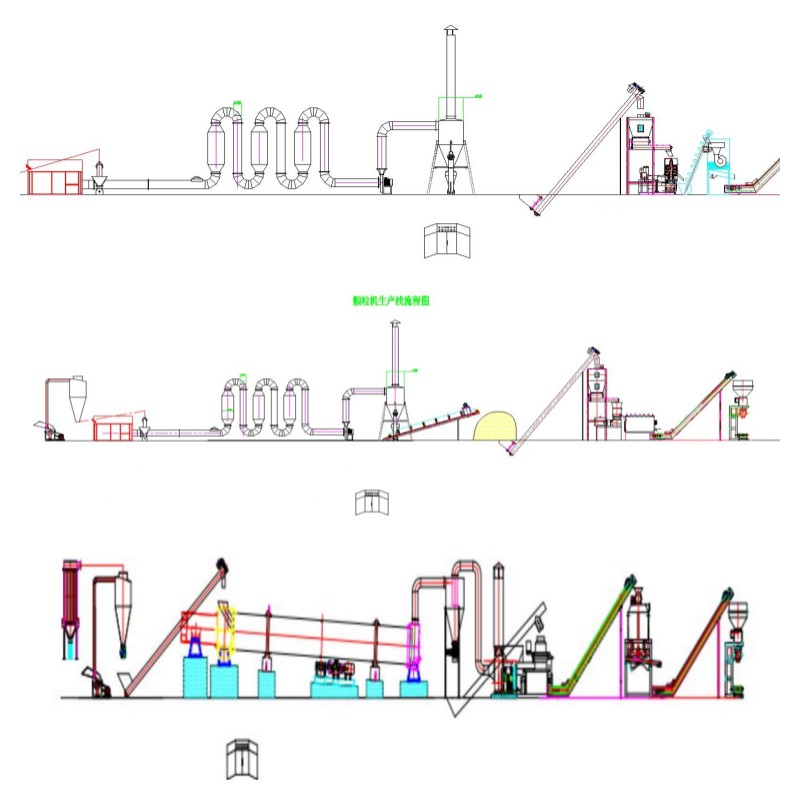

Wood pellet machine production line refers to the mechanical equipment that processes wood chips, sawdust and other raw materials into pellets.
The production process of wood pellet machine includes three steps of crushing, drying and molding, and the process is as follows:
1. Raw material crushing:
Raw materials are preliminarily crushed by the jaw crusher, and then sent to the ball mill by the belt conveyor, and then finely crushed and then conveyed to the vibrating screen for classification.
2. Drying:
The material is heated in the drying room to about 50-70°C and enters the airflow drying room for heat exchange, and the temperature can reach above 100°C; the material falls in a fluffy shape (ie boiling drying) in the drying room, further evaporates water in the hot air flow, and then filters out the finished product through filter bags. If it is necessary to further reduce the dust content of the tail gas and use the induced draft fan, install a dust collector.
3. Granulation:
When the granules are cooled to the point that they are not sticky to the hands, they are released from the mold hole and become granule products with uniform particle size. Due to the advantages of low investment and low energy consumption, the equipment is widely used in the mechanism charcoal industry and biomass energy industry and other users who need to produce various fuels.
4 bags:
It is used to ship finished products and protect products from pollution and moisture deterioration during transportation.
5. Conveying device:
The equipment that transports the formed product to the next process, such as belt conveyor line, screw conveyor, bucket elevator, etc.
Features:
1 High production capacity, low price, low power consumption:
2. Strong material adaptability: It is suitable for the molding of various biomass raw materials. The sawdust can be processed from powder to 10mm in length and with a moisture content of 5--20%;
3. Enlarging the gearbox to solve the difficulty of blockage and failure;
4. Adjustment function of the pressure wheel: use the principle of bidirectional rotation of the thrust bearing to adjust the pressure angle, so that the material will not be squeezed or stuffy, and the stability of the discharge molding will be ensured;
5. Simple operation and convenient use: high degree of automation, less labor, only 3 people are needed, manual feeding or automatic feeding by conveyor can be used;
Technical Parameters:
| Parameter | Details |
| Raw Materials | Wood Chips, Sawdust, Rice Husk, Straw, Etc. |
| Clients | Europe, North America, South America, Africa, Etc. |
| Moisture Content | Less Than 15% |
| Durability | More Than 95% |
| Finished Products | Biomass Pellets |
| Size of Pellets | 6-12mm |
| Main Equipment | Hammer Mill, Dryer, Pellet Mill, Cooler, Packing Machine |
| Fuel Type | Biomass Pellets |
| Density of Pellets | 1.1-1.3g/cm3 |
Applications:
Packing and Shipping:
Biomass Pellet Production Line FAQs
- Q: What is the brand name of Biomass Pellet Production Line?
- A: The brand name is Biomass Pellet Production Line.
- Q: What is the model number?
- A: The model number is EWP-420.
- Q: Where is it produced?
- A: It is produced in HENAN.
- Q: What is the certification?
- A: The certification is CE BV.
- Q: What is the minimum order quantity?
- A: The minimum order quantity is 1 set.
